All Saints, Maidenhead, Berkshire

Specification
Choir
Open Diapason 8
Stopped Diapason 8
Dulciana 8
Wald Flute 4
Great
Bourdon 16
Open Diapason 8
Geigen 8
Hohl Flute 8
Octave 4
Octave Quint 2 2/3
Super Octave 2
Swell
Clarion 4
Trumpet 8
Double Trumpet 16
Tremulant
Clarinet 8
Oboe 8
Gemshorn 4
Violin Diapason 8
Lieblich Gedeckt 8
Echo Gamba 8
Voix Celestes 8
Octave
Pedal
Open Wood 16
Sub Bass 16
Octave Wood 8
Flute 8
Couplers
Swell to Great
Swell to Choir
Choir to Great
Swell to Pedal
Great to Pedal
Choir to Pedal

PISTONS:
under swell; 1,2,3,4, Full, Clarinet.
under great; 1,2, full.
under choir; 1,2.
4 pedal toe pistons; 16’, 16’, G-P, Tremulant.

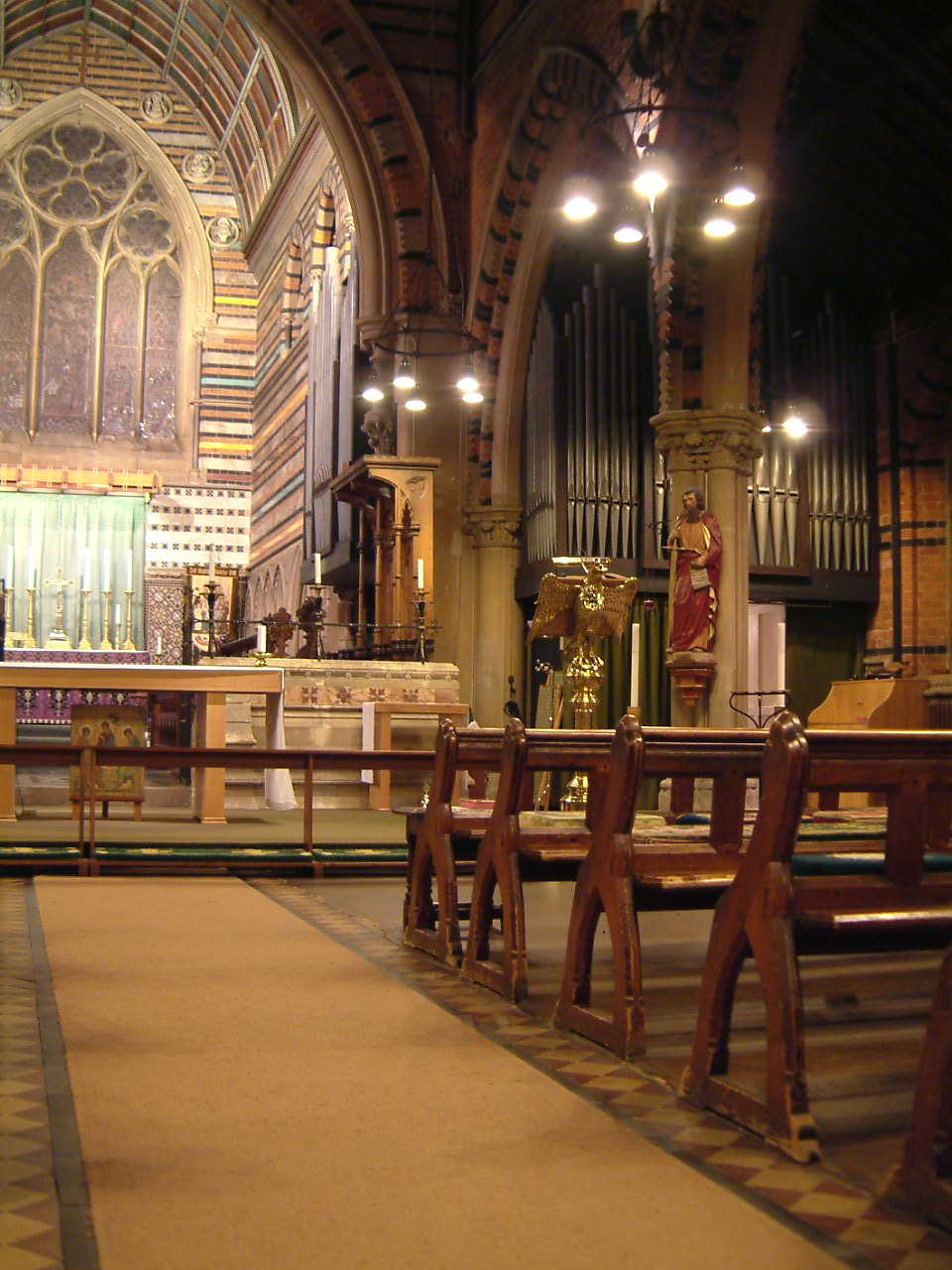

This fine example of the work of Harrison and Harrison in 1931, one which incorporates the pipework from the former Walker organ, was voiced by Arthur Harrison. It is ingeniously worked into the Chancel position and with an unusual layout of Swell and Choir above the console and Great organ in the next bay West facing the congregation. The huge open wood squeezed into the various crevices at the back of the organ and now has its own organ blower; the Bourdon faces East into the vestry.

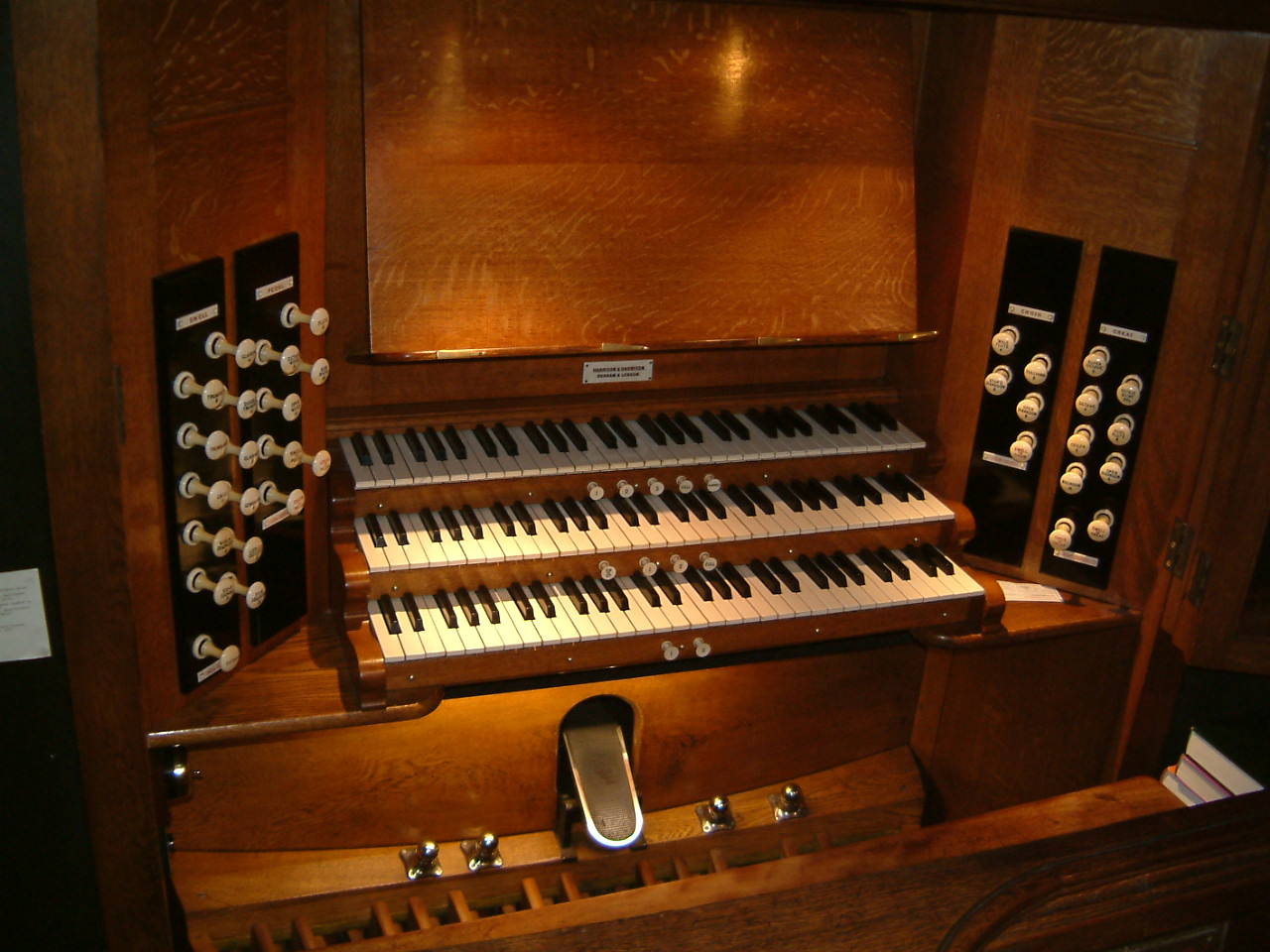

Whilst the organ obviously had to be restored unaltered the impracticality of maintaining the tubular pneumatic action lead to the decision to install electric magnet primaries to the soundboards, now allowing access to the back of the console and to the soundboards. The console is unaltered and with the scant original piston provision as it was (the set piston being out of sight).

Casework. It is obvious that the organ was intended to have an oak case, that this was prepared for and that it never happened. How elaborate this was intended to be is not known, but the organ and the preparation lends itself to the provision of practical and relatively simple casework.
